SB25AW High Output Multi-Use All-Weather Loudspeaker

You have never had such a compact and capable loudspeaker in your system design toolbox before.

The Theory sb25aw is an all-weather, 4-ohm or 70V/100V, version of the remarkable sb25 indoor surface mount loudspeaker.

Like the sb25, the sb25aw is a wide-bandwidth, high-output multi-use loudspeaker, perfect for restaurants, bars, hotels, retail stores, houses of worship and anywhere high-resolution, high-fidelity background or foreground sound is needed. The sb25aw incorporates a durable perforated stainless steel grille, water-tight loudspeaker wire entry point, selectable hi-z or low-z operating modes, and has an optional yoke mounting bracket available.

Capable of astonishing range and output, the 3.8” deep sb25 is literally a jack of all trades and will have you rethinking how you incorporate sound in your next high-value project.

Description:	High-Output Weather Resistant Surface Mount Loudspeaker
Operation:	Passive, Requires 1 Theory Loudspeaker Controller Amp Channel
	4-ohm or 70V/100V Operation, Selectable
DSP Requirements:	Requires Model-Specific Theory-Certified DSP Loudspeaker Processing
Drivers:	2 x 5" Theory Carbon Fiber Low Frequency Drivers
	1 x 1.4" Theory Advanced Polymer High Frequency Compression Driver
Enclosure:	Powder Coated and Anodized Extruded and Machined Aluminum, Perforated Aluminum Grille
Terminals:	Euroblock Connector with Parallel Output
Outdoor Capability:	Indoor and Outdoor Use
Mounting Points:	Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts
	Included Z-Clips
	Optional Yoke Bracket, Universal Mount Adapter, and Table Top Stand
Bandwidth:	54Hz -23kHz, -6dB;
	46Hz-24kHz, -10dB
Coverage:	125 Degrees Conical
	160 Degrees Conical (-12dB @ 10kHz)
Sensitivity:	94dB (LF); 108dB (HF) SPL/2.83V/1m
Power Handling:	200W (AES);
	400W (Continuous);
	800W (Peak)
Minimum Recommended Power:	50W rms
Maximum Output:	117dB / 1m (based on AES power rating)
	123dB SPL / 1m (peak)
Nominal Impedance:	4-ohms; Hi-Z (70V/100V) Selectable
Transformer Taps:	60W, 30W, 15W, (7.5W, 70V)
Colors:	Black, White
Dimensions:	21.5" H x 9.5" W x 3.8" D (546mm H x 241mm W x 97mm D)
Total Installed Depth (Z-clip Mount):	3.93" D (100mm) Including Z-Clip Mounting Brackets
Net Weight:	24.5 lbs. (11.1 kg)
Included Accessories:	Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting
	sb25aw Waterproof Terminal Cover
Optional Accessories:
	sb25aw Yoke Bracket
	sb Table Top Stand
	sb25 Universal Mount Adapter:
	Mount Hole Patterns: 75mm and 100mm VESA Square, 2.0” x 4.25” 1/4”-20 and 2.75” x 5.0” 1/4”-20 Threads, Mount Hole for 1/2" Rigid Conduit Hub (1/2" conduit mount)
Compatible 3rd Party Mounts:
	Omnimount 25.0W Wall Ball Mount
	Omnimount 25.0C Ceiling Ball Mount
	Adaptive Technologies Multimount MM-016-BT Wall Multi-Mount
	Adaptive Technologies Multimount MM-017 Wall Pan and Tilt Mount
	Adaptive Technologies Multimount MM-018 Ceiling Pan and Tilt Mount

Outdoor Speakers

Bowers & Wilkins AM1 Outdoor Speakers (pair)

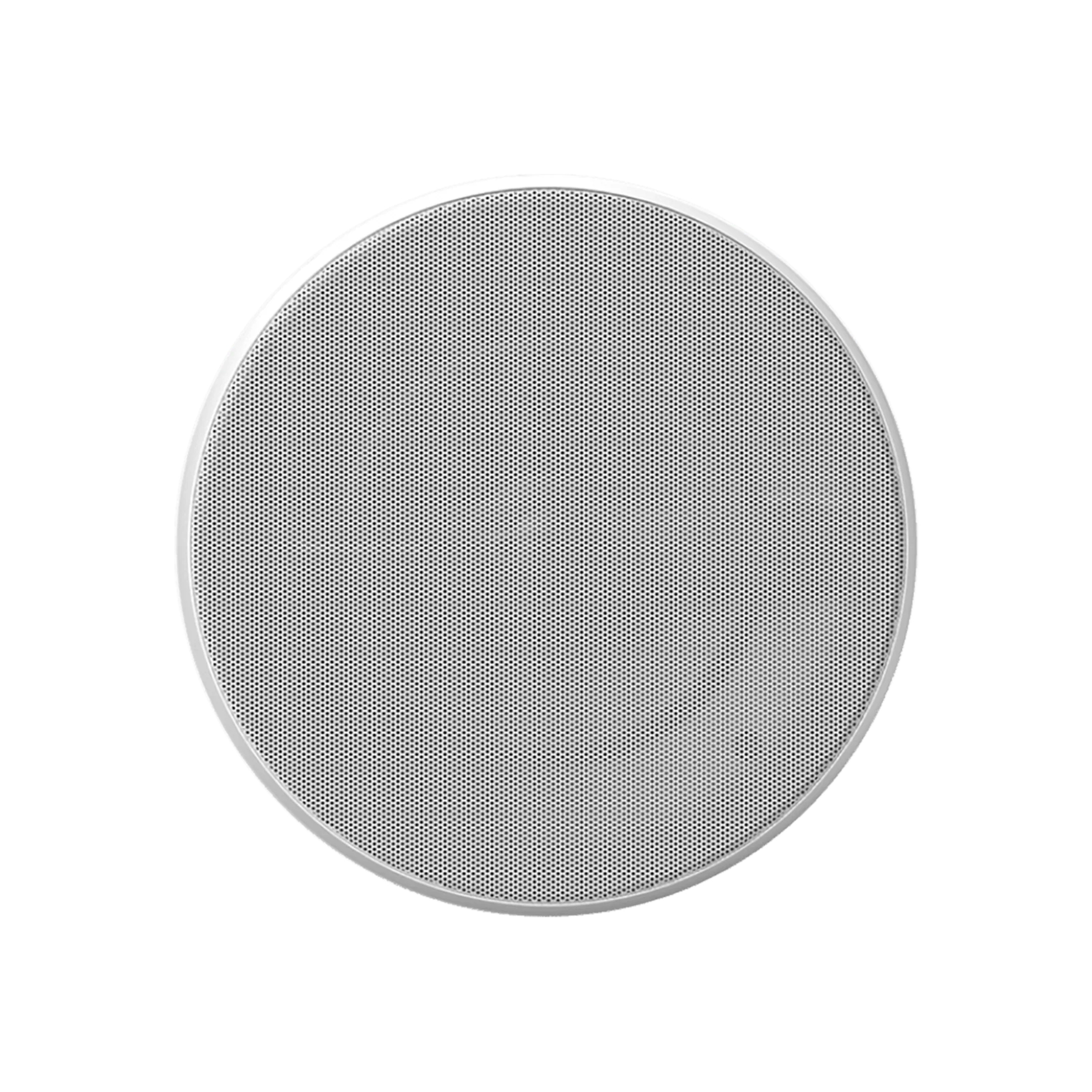

Bowers & Wilkins Marine 6 In Ceiling Outdoor Speakers (Pair)
