The Story
The best of bass

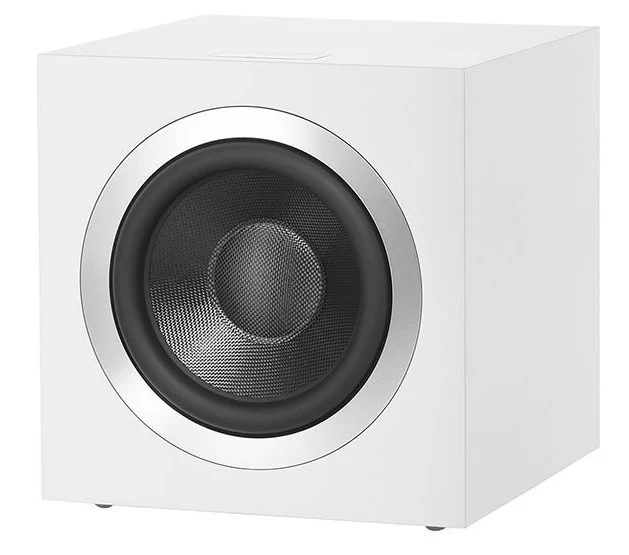

Powered by a mighty 1000W of digital amplification, and featuring the same Aerofoil™ cone drive unit technology found in the 800 Series Diamond, the DB4S delivers unrivalled precision, control and authority. It’s the perfect partner for 700 Series speakers in a home audio set-up.
Technical specifications:
Technical features
1000W Class D Hypex amplifier
Aerofoil™ bass cone
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Description
Active closed-box subwoofer system
Drive units
1x ø250mm (10in) Aerofoil™ cone bass
Frequency range
-6dB at 8.5Hz and 500Hz
Frequency response
10Hz – 350Hz -3dB (centred on level at 100Hz)
Max power output
1000W
Rated power consumption at 1/8th of rated power
195W
Standby power consumption
<0.5W
Inputs
2 x RCA
2 x XLR
Input impedance
RCA: 10 kOhm
XLR: 20 kOhm
Signal to noise ratio
82 dB
Dimensions
Height 377mm including feet
Width 360mm
Depth 368mm
Net weight
26kg
Cabinet finishes
Gloss Black
Satin White
Rosenut
Grille finishes
Black
Grey
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The best of bass
Powered by a mighty 1000W of digital amplification, and featuring the same Aerofoil™ cone drive unit technology found in the 800 Series Diamond, the DB4S delivers unrivalled precision, control and authority. It’s the perfect partner for 700 Series speakers in a home audio set-up.
Technical specifications:
Technical features
1000W Class D Hypex amplifier
Aerofoil™ bass cone
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Description
Active closed-box subwoofer system
Drive units
1x ø250mm (10in) Aerofoil™ cone bass
Frequency range
-6dB at 8.5Hz and 500Hz
Frequency response
10Hz – 350Hz -3dB (centred on level at 100Hz)
Max power output
1000W
Rated power consumption at 1/8th of rated power
195W
Standby power consumption
<0.5W
Inputs
2 x RCA
2 x XLR
Input impedance
RCA: 10 kOhm
XLR: 20 kOhm
Signal to noise ratio
82 dB
Dimensions
Height 377mm including feet
Width 360mm
Depth 368mm
Net weight
26kg
Cabinet finishes
Gloss Black
Satin White
Rosenut
Grille finishes
Black
Grey
