Original: $10,995.24
-65%$10,995.24
$3,848.33The Story
LISTENING TO MUSIC ON SMALL-SIZED SYSTEMS IS A REASONABLE AND QUITE UNDERSTANDABLE PREFERENCE, GIVEN THAT THEY ARE EASILY INSTALLED IN MANY VENUES.

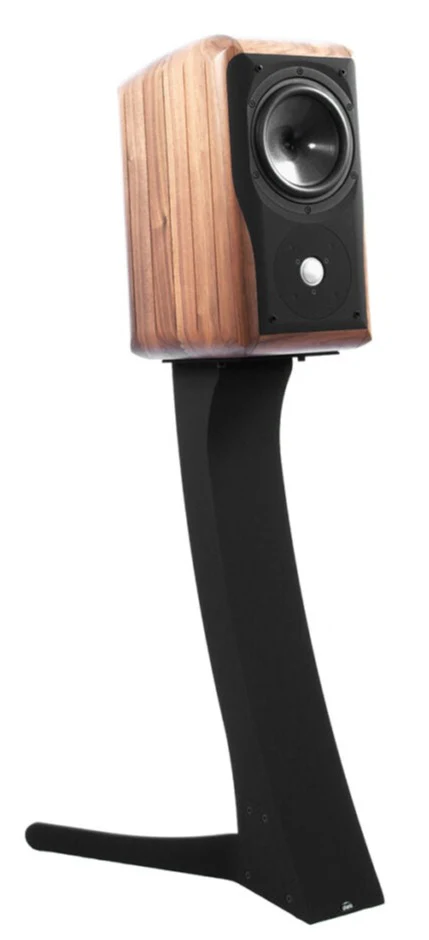

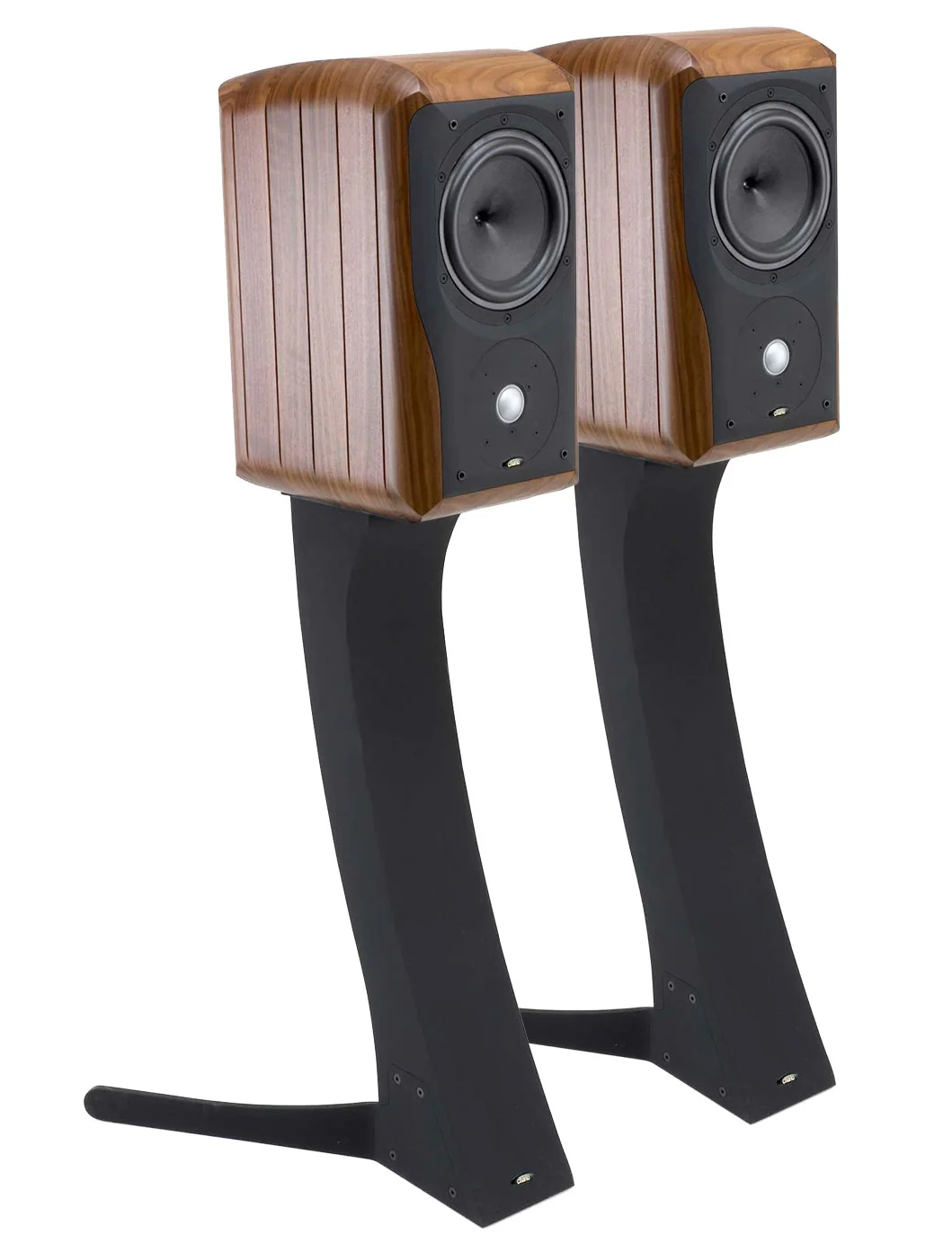

WITH MATCHING STANDS
Two-way bookshelf systems usually place the tweeter in the uppermost region of the speaker’s cabinet. If the designer is also aiming for synchronization of the two transducers, the plinth must be given a suitable back tilt. Sonnet inverts this principle by affixing the tweeter below. Hence, the cabinet should be tilted forwards.
TECHNICAL DATA
2-way Reversed Array
DRIVERS
1 Tweeter 32 mm SILVERSOFT™ dome NdFeB motor
1 Woofer 170 mm ROHACELL® Full-Apex™ Poly-Ring NdFeB motor
SENSITIVITY
90 dB SPL normalized to 1 m/2.83 Vrms/
de-correlated L/R pink noise in
ITU-R BS 1116-1 compliant listening room
LOW FREQUENCY CUT OFF
55 Hz @ -3 dB referred to C4 WETS
OVERLAPPING POINTS
1180 Hz // LKR4 Derived (Δf=45°)
RATED IMPEDANCE
Modulus 4 Ω (min 3.0) Argument ±36°
LOW FREQUENCY LOAD
Back-Firing Vented
VENT GEOMETRY
Half-Exponential Hourglass Type
FINISH
Solid walnut and hdf
SIZE
445 x 235 x 340 mm (H x W x D)
WEIGHT
14 Kg ( single piece )
SPEAKER ORIENTATION
Speakers should be titled inward facing the listener
LISTENING DISTANCE & LAYOUT
Optimum speaker-listener distance > 3.0m
A carpeted floor in front of the speakers is recommended
SIDE AND BACK WALLS
Should be at least 1m away from the speaker front baffle
SUGGESTED AMPLIFIERS IN NORMAL AMPING
Rated for 120 W / 4 Ω Average Power
WARRANTY
5 years Worldwide
SPARE PARTS AVAILABILITY
All the spare parts will be available for 15 years after the
model will be discontinued.
