Martin Logan IC6 In Ceiling Speakers Each

Solutions Meet Performance

Manufactured to the highest standards of quality and performance, the new Installer Series by MartinLogan is a line of affordable, high-performance, ultra-low-profile custom installation in-ceiling and in-wall speakers. Featuring titanium dome tweeters and mineral-filled polypropylene drivers, each model comes with a remarkably robust mounting-lock system and paintable micro-perf, bezel-free grilles for a nearly invisible installation. Two all-weather models extended usage to high humidity areas. Pre-installation brackets are available for all models and square grilles are available for select in-ceiling models.

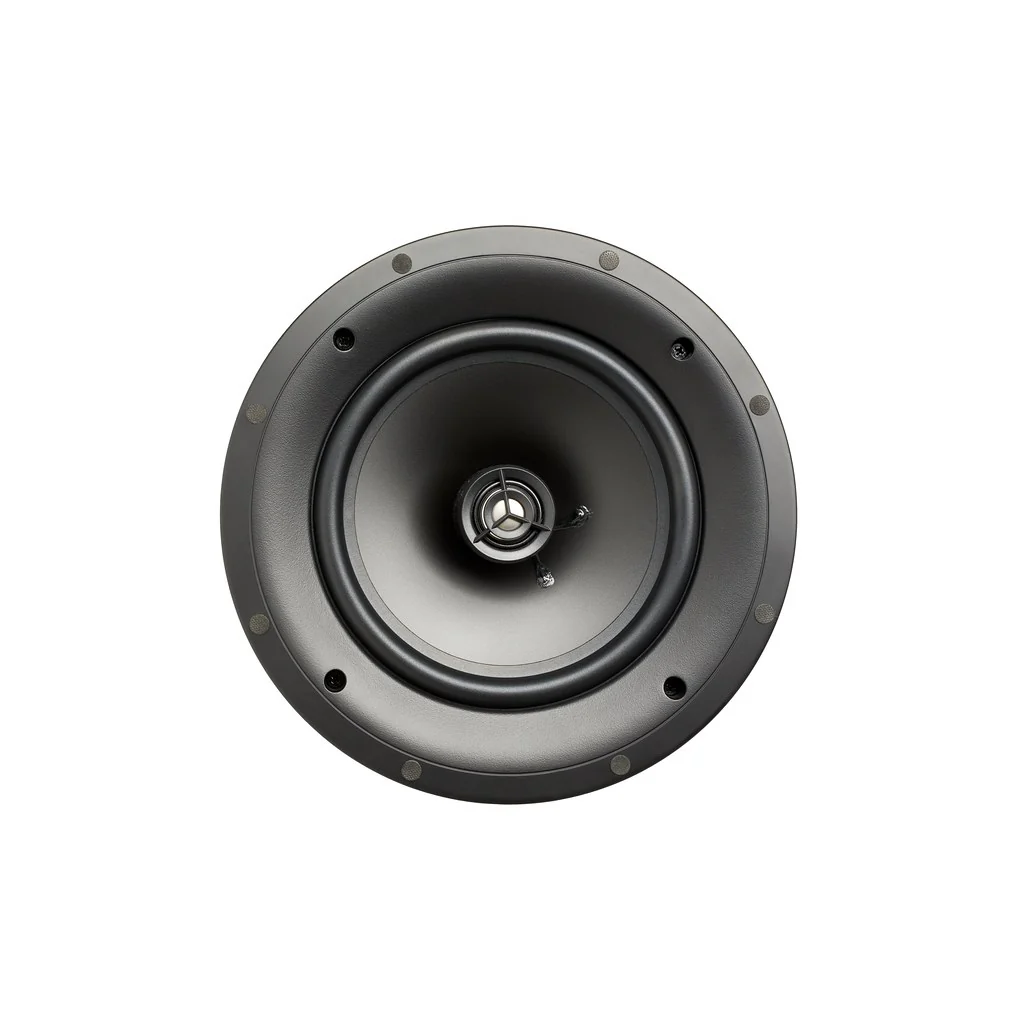

Titanium Dome Tweeters and Poly Cone Woofers

Titanium dome tweeters used throughout the Installer Series are ferrofluid damped and cooled for smooth high-frequency performance with amazing clarity across a wide listening area. Mineral-filled polypropylene cone bass/midrange drivers feature robust computer-optimized ferrite magnets and high-power motor structures to deliver detailed midrange performance and clean, extended bass response.

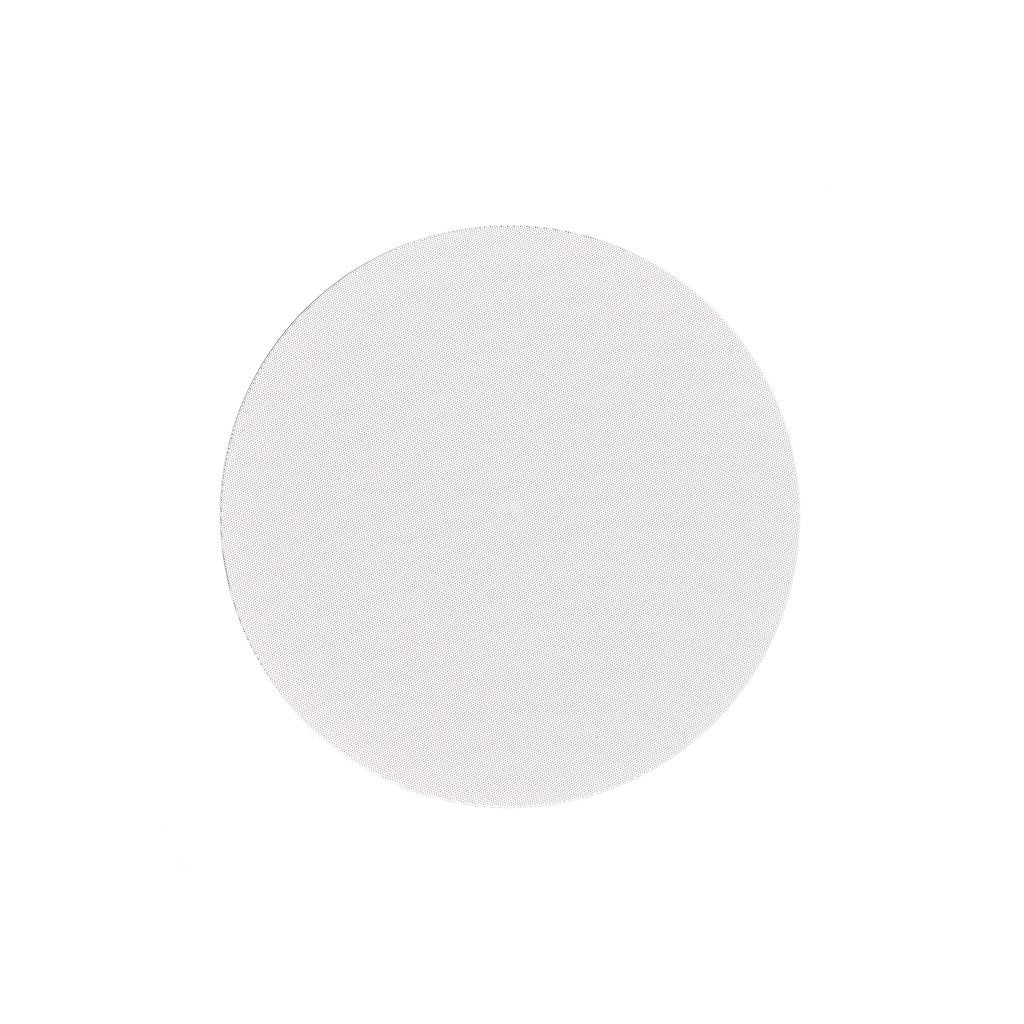

Micro-Perforated Grilles

Installer Series speakers feature ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. To match modern aesthetics, optional square grilles are available for most in-ceiling models (excludes all-weather versions).

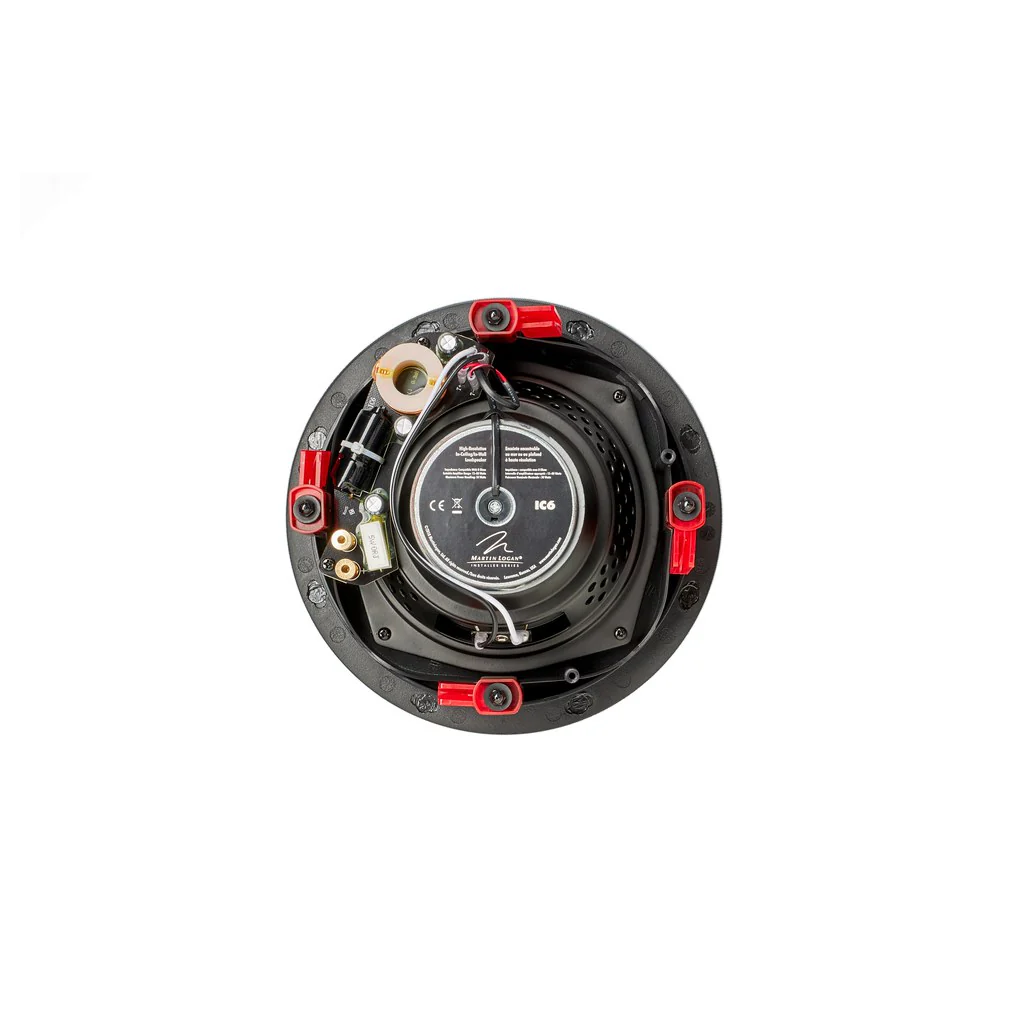

Precision Crossovers
& Spring-Loaded Binding Posts

Carefully hand-built using only the finest polyester capacitors and air-core coils, Installer Series crossovers employ MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. Spring-loaded binding posts feature a larger wire access hole and connect via banana plug, pin, or 12AWG bare wire

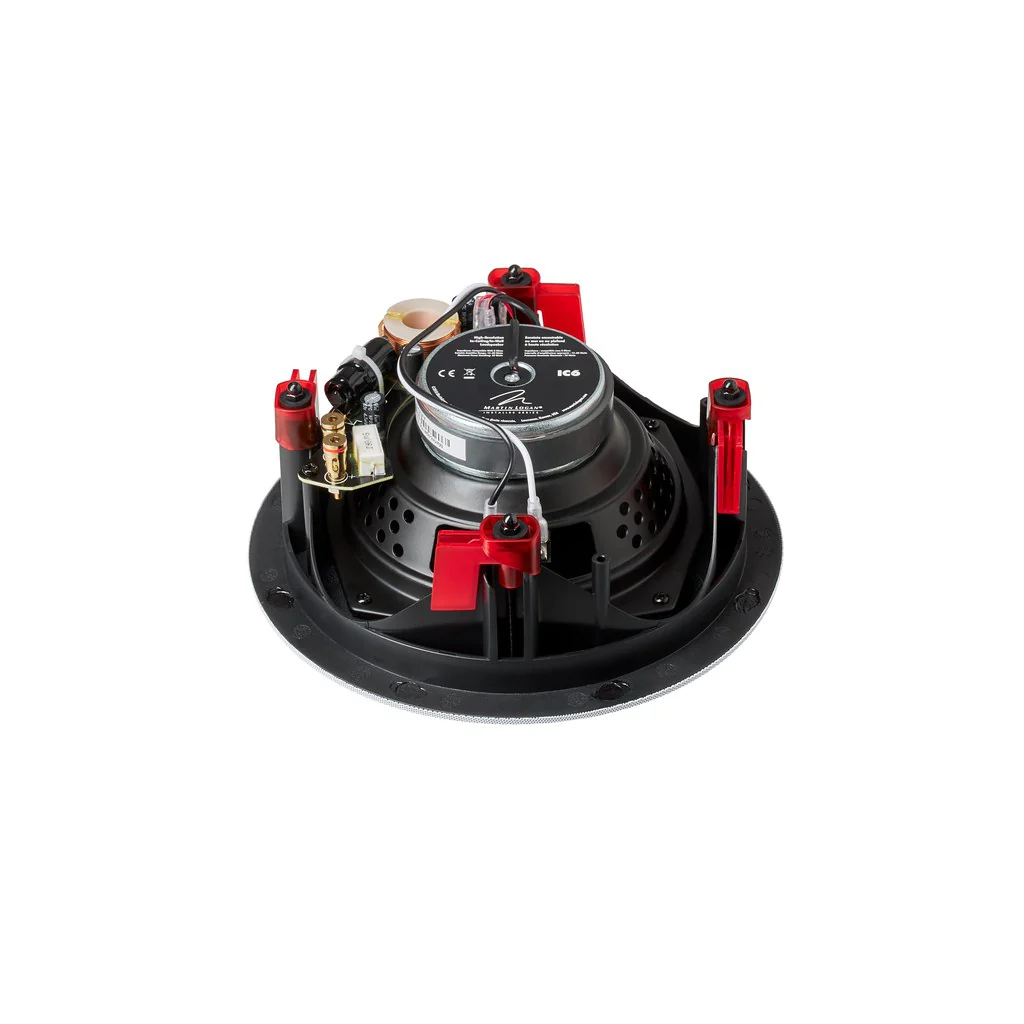

Robust Mounting-Lock System

A simple, yet robust mounting-lock system allows quick, trouble-free installation. Pocketed screw holes help hold the drill steady, making installation a snap. When not in use, mounting locks are held securely within a self-contained housing. When moved into place, they couple the chassis firmly to the ceiling or wall, increasing the rigidity of surfaces. If ever removed, the locks retract and latch back in their housings. Each speaker includes a full-size installation template featuring quick-reference instructions, and die-cut guides for marking the cutout hole.

Specifications

Specifications are subject to change without notice

Frequency Response	55–20,000 Hz
Recommended Amplifier Power	80 Watts
Sensitivity	89dB
Impedance	Compatible with 8 ohms
Crossover Frequency	3,000 Hz
High Frequency Transducer	0.75” (1.9cm) titanium dome
Low Frequency Transducer	6.5” (16.5cm) mineral-filled poly cone
Binding Post Inputs	Push style accommodates wire up to 12AWG
Weight	3.5 lbs. (1.6 kg)
Dimensions (overall size)	8.7” x 3.46” (22.1 x 8.8cm)
Cut-Out Dimensions	7-3/4” (19.6cm) dia.
Projection From Wall Surface	0.31” (0.8cm)
Depth Behind Wall Surface	3.18” (8.1cm)
Square Grille (sold separately)	C6 & C6-ST Square Grille
Pre-install Bracket (sold separately)	C6 & C6-ST Bracket
