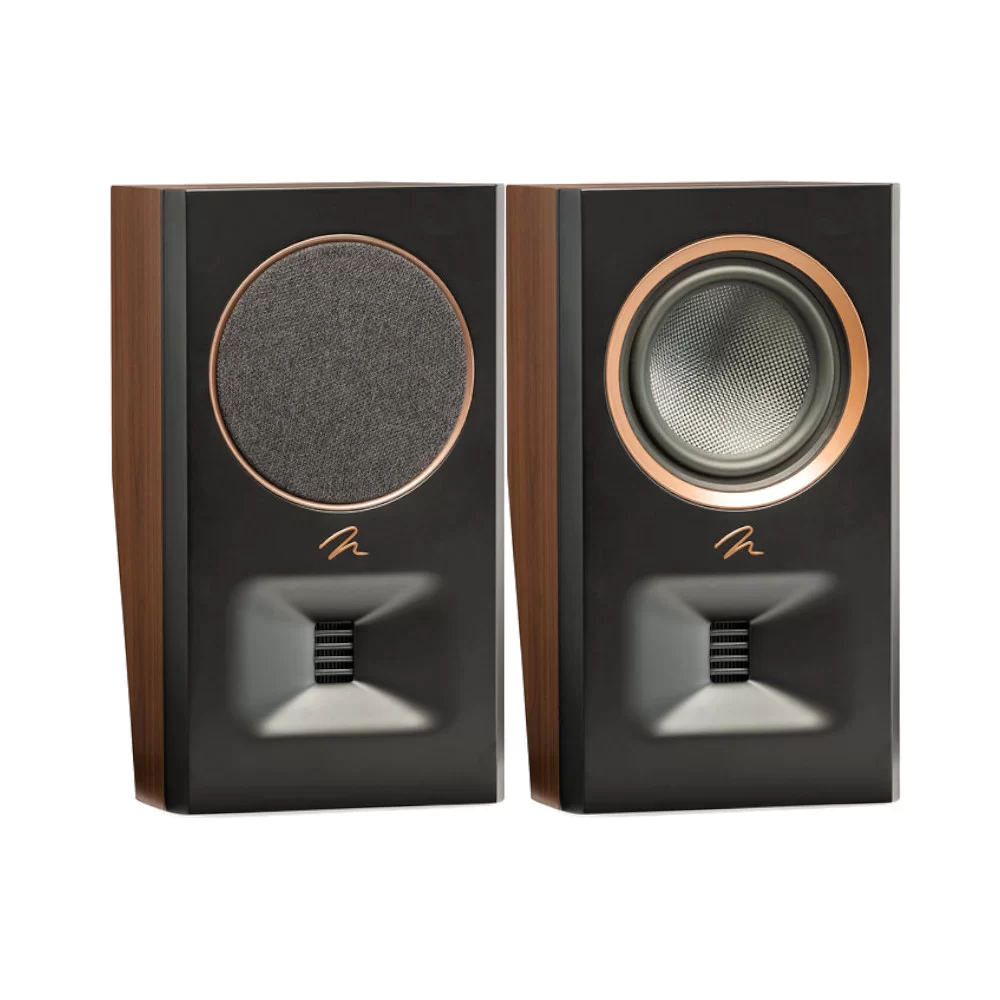

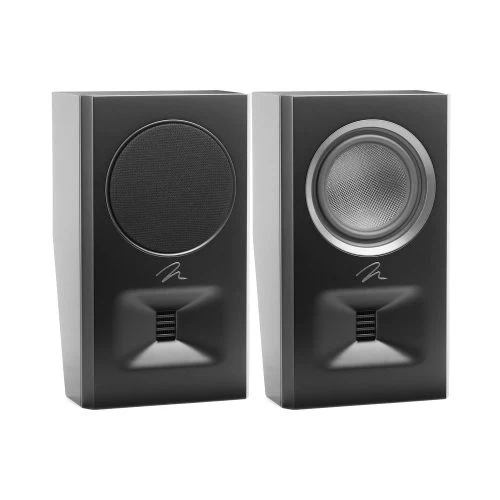

Martin Logan Motion MP10 On Wall Speakers

Motion®: Reimagined

Our most ambitious acoustic and aesthetic development in MartinLogan's 40-year history. Motion® Series defines elegance and performance by leveraging exclusive technologies and decades of experience. The result is a loudspeaker collection that is not just an upgrade of its predecessor, but a whole new level of quality and excellence.

Motion MP10

Motion® MP10’s innovative shape and mounting system allows it to be used as a shallow depth bookshelf speaker or wall mounted using the included mounting bracket making it one of the most versatile speakers in the Motion® range. It can be mounted parallel to the wall surface or flipped upside down to angle downwards into the room, perfect for when installation above ear level is desired. MP10's Gen2 FMT and Folded Motion® Waveguide ensure that your listening area is blanketed in clear, detailed sound wherever you decide to install it.

Gen2 Obsidian Folded Motion® Tweeter

Our signature thin-film tweeter technology just got better. With an upgraded motor structure, the latest Gen2 FMT provides higher output and lower distortion than ever before.

Folded Motion® Waveguide

After an extensive evaluation of nearly 50 design options, the Folded Motion® Waveguide profile was meticulously chosen to harmoniously align with the dispersion of the midrange drivers, resulting in enhanced output. The waveguide guarantees consistent sound quality regardless of the listener's position and minimizes unwanted room reflections. Proper waveguide design is crucial as it helps control the sound's dispersion pattern, ensuring that the sound is evenly distributed across the listening area and resulting in optimal sound quality.

Woven Fibreglass Midrange

The lightweight and strong Woven Fiberglass midrange in the Motion® series is perfectly suited for keeping pace with Motion’s Gen2 FMT, providing crystal clear dialogue and vocals, as well as lifelike instrumentals.

Stealth Bass Port

MP10's Stealth Bass Port allows it to achieve comparable bass output to that of traditional bookshelf speakers but at half the depth. Its innovative shape and mounting system allows MP10 to be used as a shallow depth bookshelf speaker or wall mounted using the included bracket. When wall mounted, the brilliant Stealth Bass Port does not interfere with the bracket allowing MP10 to be mounted parallel to the wall surface or angled downwards into the room, perfect for when installation above ear level is desired.

Modern Design Featuring Luxurious Finishes

The latest Motion® speakers utilize cutting-edge technology and the highest quality materials to deliver sound quality that is truly unmatched. Their sleek, sophisticated design is an artful complement to any interior. Available in three finishes of Satin White, Walnut or Gloss Black, these speakers are an exquisite addition to any discerning individual's home. Upgrade your audio experience and enhance your space with the Motion® series.

Specifications

Specifications are subject to change without notice

Dimensions (H x W x D, with feet)	14” x 8” x 5” 35.6cm x 20.3cm x 12.7cm
Frequency Response	81 Hz - 25kHz ± 3 dB
Tweeter Dispersion (horizontal x vertical)	90° x 90°
Recommended Amplifier Power	20 - 200 watts
Sensitivity	92 dB
Impedance	5 ohms
High Frequency Driver	1” x 1.4” (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm
Crossover Frequency	2,100 Hz (2-way)
Mid-Frequency Drivers	5.5” (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant asymmetrical chamber format. Unibody cone construction.
Cabinet	Stealth Rear Ported
Binding Post Inputs	Custom 5-way binding posts
Weight	9.7lbs / 4.4kg
Finish	Gloss Black, Walnut, and Satin White
