The Story

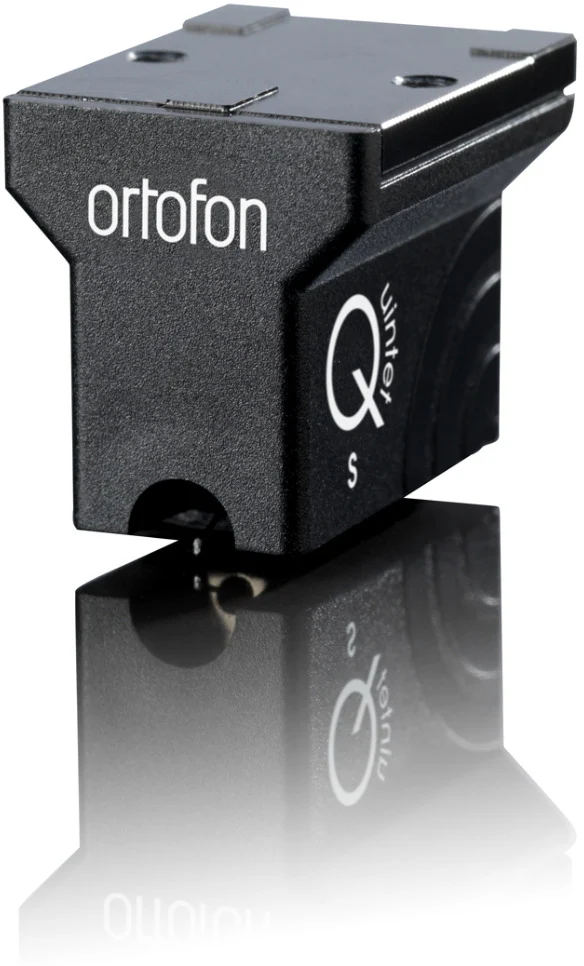

The Quintet Black S is the best example of Quintet’s overall excellence
The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever.
The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.0 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20 - 25.000 Hz
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
*) Typical value
